Gravimetric Filling SystemGemiFill™ GR, GR-M

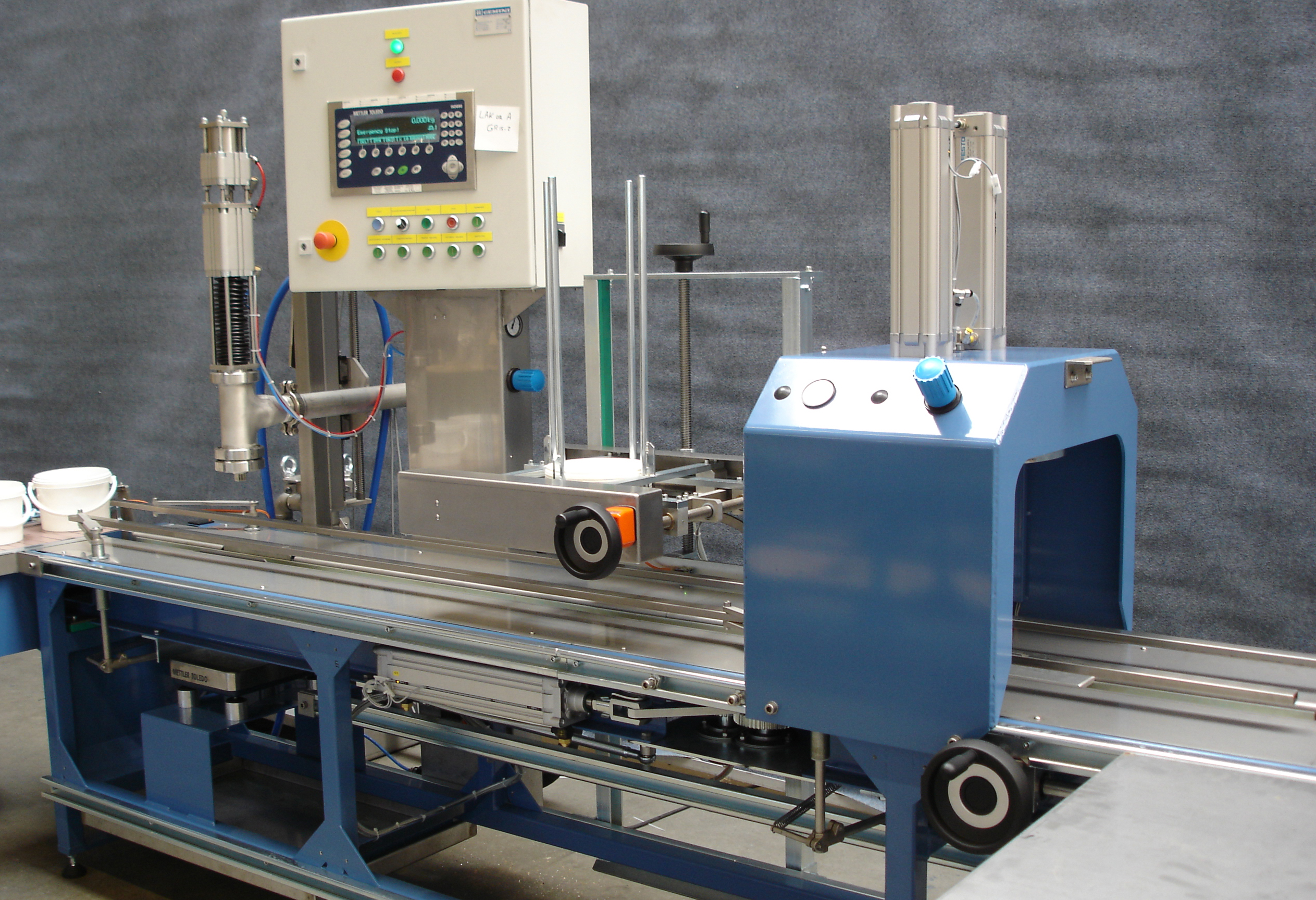

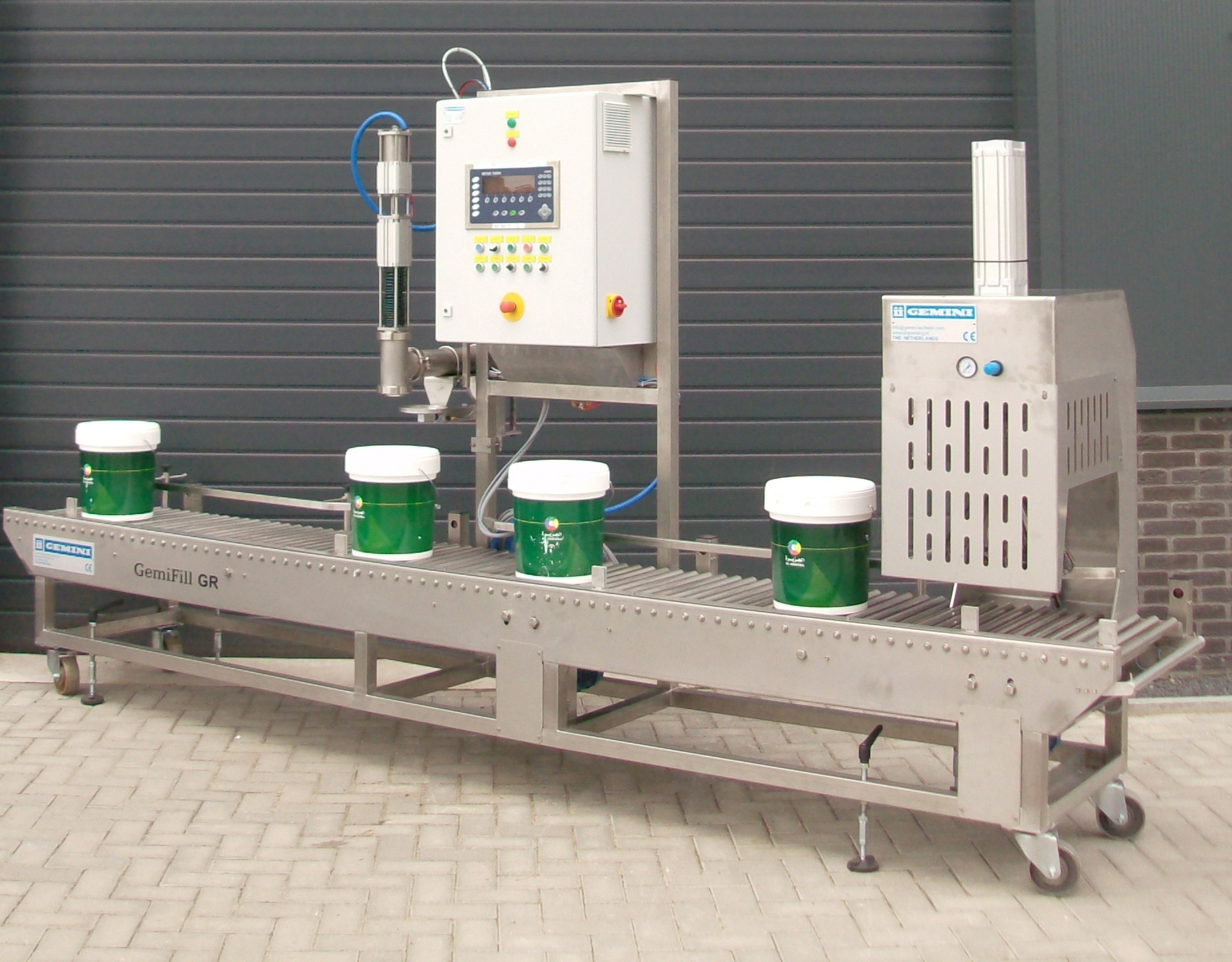

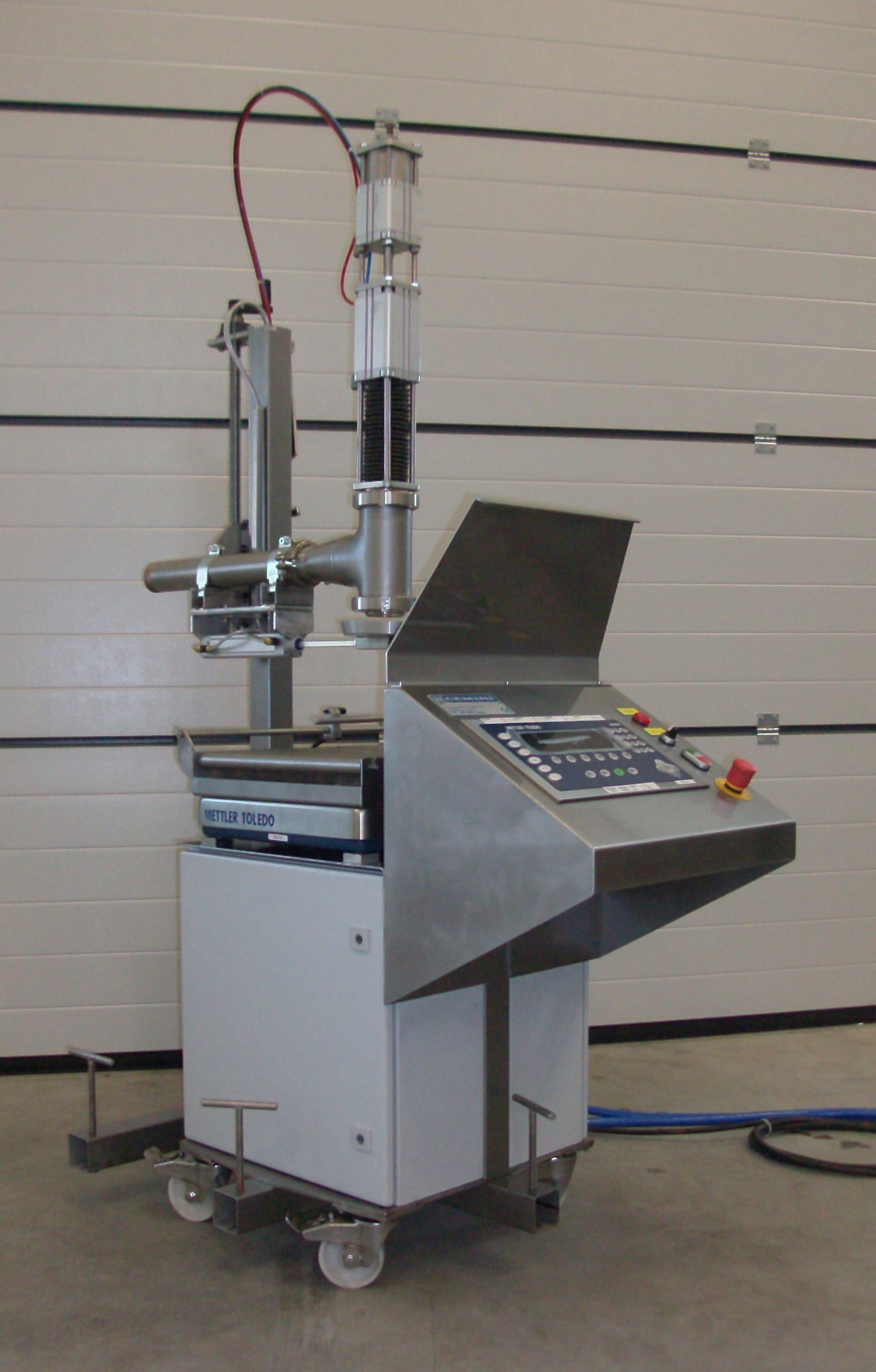

GemiFill™ GR Filling System

Semi or Fully Automatic, Single Product

The GemiFill™ GR filling system utilizes a weighing scale to measure the volume of the containers being filled, up to 60 kg.  Features:

• Fills directly from a tote tank, storage container, dissolver etc.
• Height adjustable filling valve for different types of packaging
• Fills by means of a air-driven membrane pump or gravity
• Easy to clean by automatic rinse cycle and removable filling valve
• Simple to operate batch controller (with self-learning parameters)
• Easy to expand with a roller track, lid closer (pressing/crimping), screw cap closer, sub-level filling lance etc.
• Upgrades to fully automatic by means of conveyors, lid systems
• Optional ATEX explosion-proof
• Batch controller with self-learning parameters
• 2-step pneumatic operated filling valve for coarse and fine flow
• Height-adjustable valve

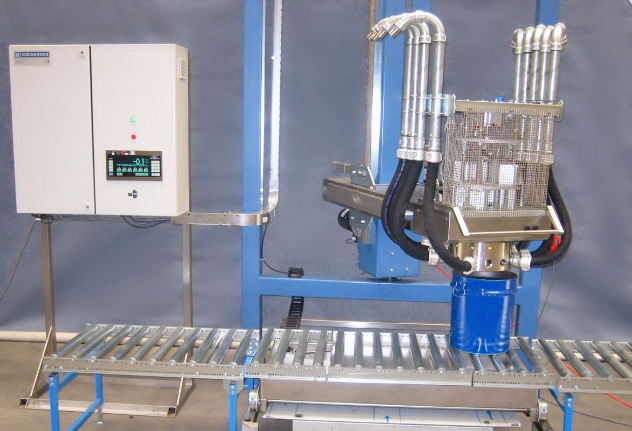

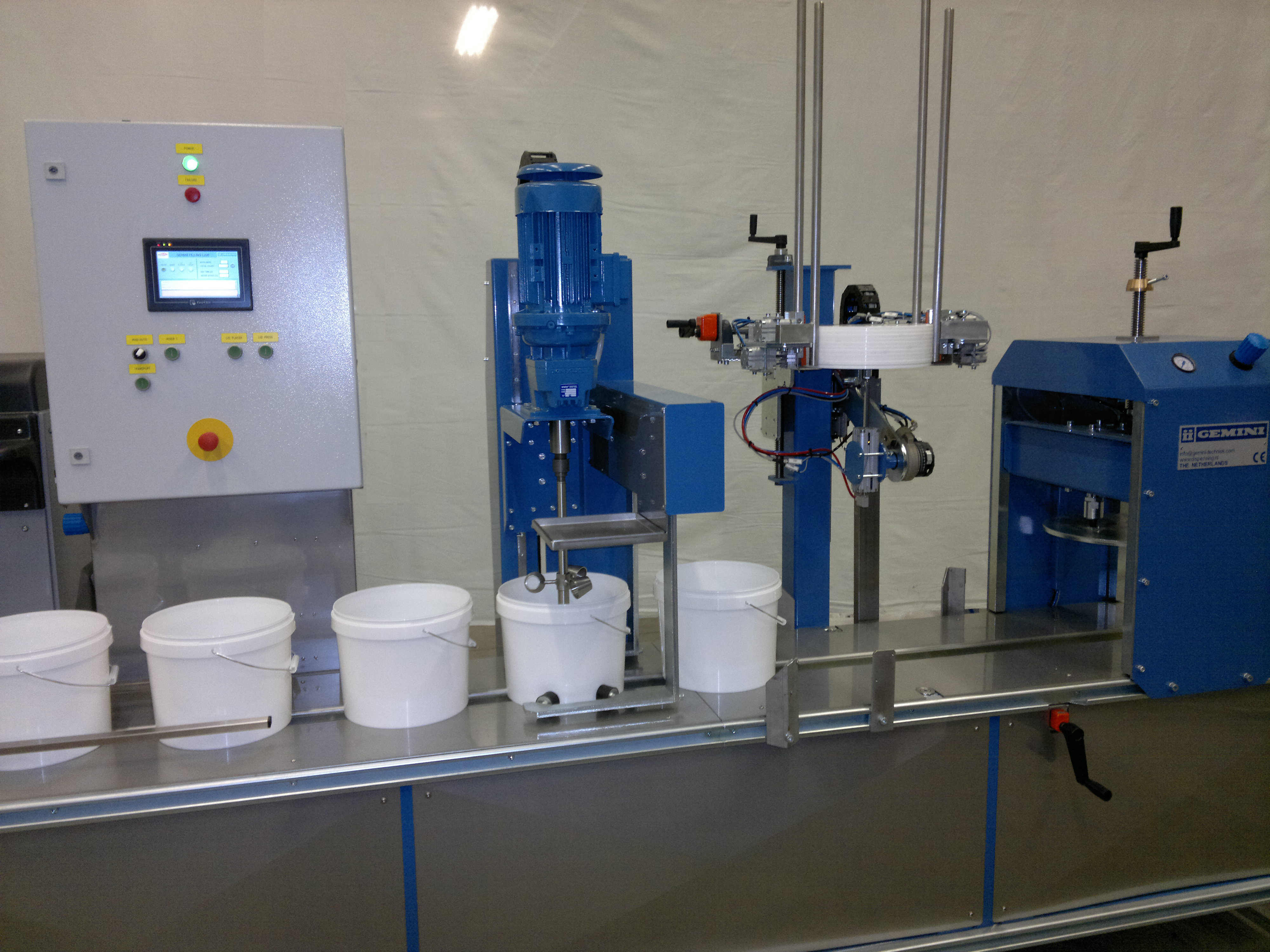

GemiFill™ GR-M Filling System

Fully Automatic, Multiple Products

The GemiFill™ GR-M filling system utilizes up to three weighing scales, to measure the volume of the containers being filled, from between 15 and 6,000 kg.  Features the GR, plus the following:

• Standard for filling up to 40 products
• Circular or linear type head depending on container size
• Two-step filling process (coarse and fine flow) of a single ingredient or formulations
• Batch controller with self-learning parameters
• Fills by means of a air-driven membrane pump or gravity
• Easy to upgrade with conveyor, lid placing and closing
